Fiber Optic 130 Watt LED DMX Illuminator

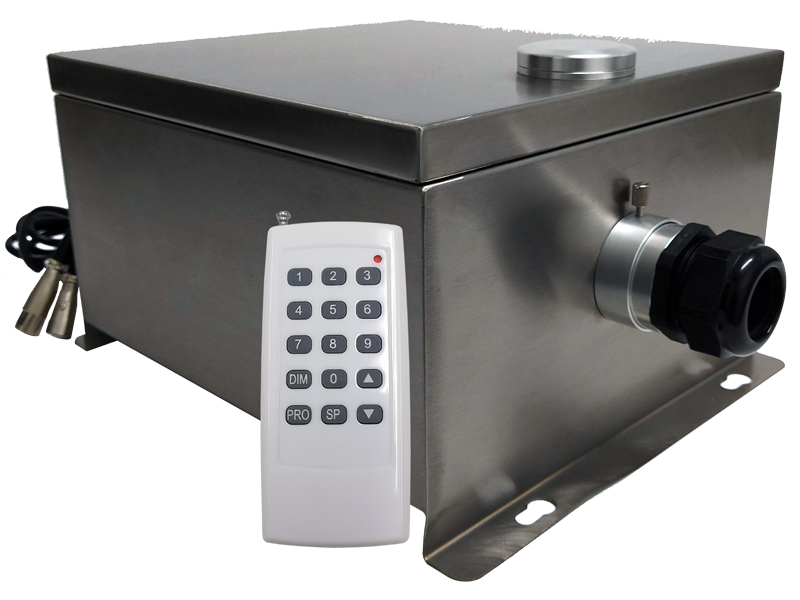

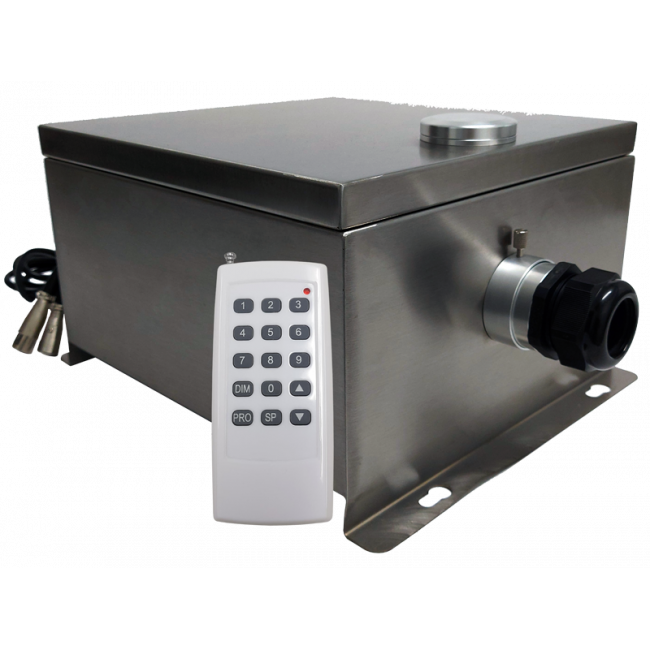

The Fiber Optic 130-watt LED DMX Illuminater is housed in a stainless steel 304 enclosure and produces 4200lm from its 130-watt LED configuration. The light shines through a color wheel of 6 colors, which can be controlled via the wireless remote. The optional DMX module, purchased separately, allows integration with home automation systems such as Dynalite, Cbus, Control4, and other RS232 and serial protocols.

Ideal for endpoint illumination and strip lighting used in pool wall lighting, landscapes and garden beds, and perimeter pool edges to create colour-changing lighting without having to connect power cables or RGB LEDs to each fitting. Light intensity at the fitting can be increased by using larger diameter fiber cores or multi-core fiber cables. Due to its transmission of cold light, this enables more applications over conventional and LED lighting, especially in wet area environments.

Maintenance benefits are increased as there is no globe or LED to replace in the fibre optic fittings or the side-emitting fibre cable. The illuminator is stored in a convenient and accessible location for servicing or repairs.

Running costs benefit from having a single point of light source with light distribution over many points through non-powered fiber cables. Up to 600, 1mm fiber cores can be lit up from one IP43-1501DMX illuminator, providing more points of light without needing to connect power to each fitting.

The LED's efficiency, long working life, and illuminator's fanless system provide a low-level noise operation.

Applications:
Downlighting - Path lighting - Pool wall light - Pool star light - Garden beds - Landscape lighting - Sauna and steam rooms - Color washing

Functions:
A single color can be selected - Colour speed is adjustable - Twinkle on/off - Twinkle speed is adjustable - Twinkle effect will change with color - Dimming - Wireless remote operation - 14 preset programs - Standard DMX512 signal - 5 channel DMX: CH1 colour, CH2 colour wheel speed, CH3 -, CH4 Dimming, CH5 Strobe

Options:
Home automation integration with optional DMX interface
*Note - Other automation systems, such as CBUS and Dynalite, will require their own DMX gateway module.
